Muffle furnace series products Location:Home -> Muffle furnace series products
NC box muffle furnace
添加时间:2011年11月15日 点击次数:9063 次

NC box series muffle furnace
Ⅰ、 sample specifications:

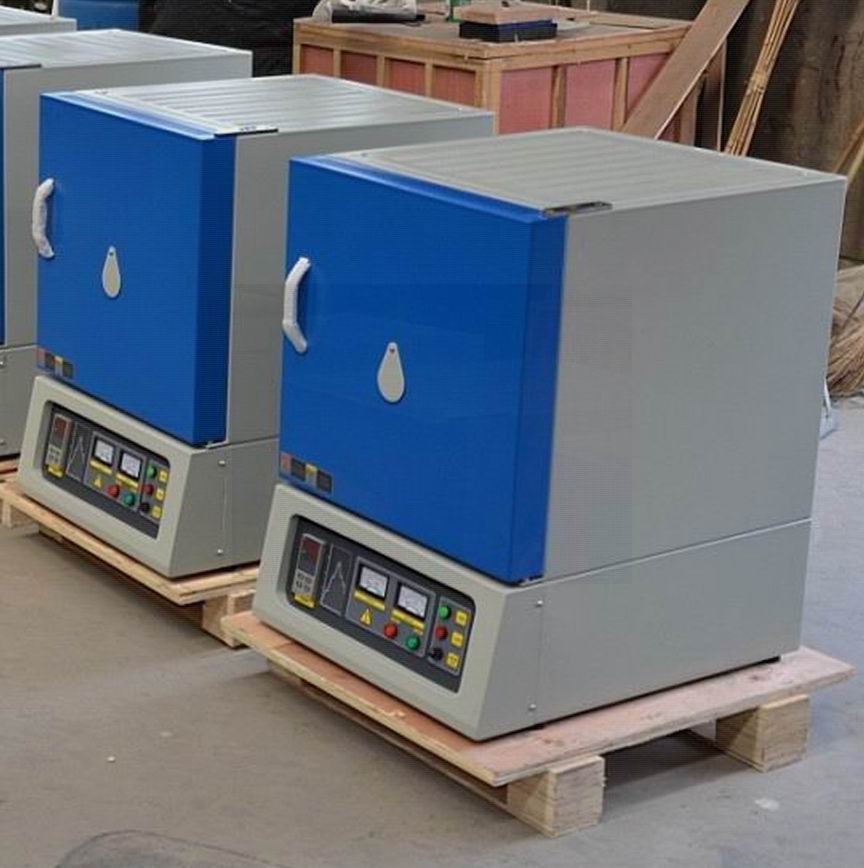

1、ST-1700MX-Ⅵ                                                       2、ST-1200RX-

Furnace chamber size:                                                  Furnace chamber size:
         300x300x300mm(WxHxD)                                          200x200x200mm(WxHxD)

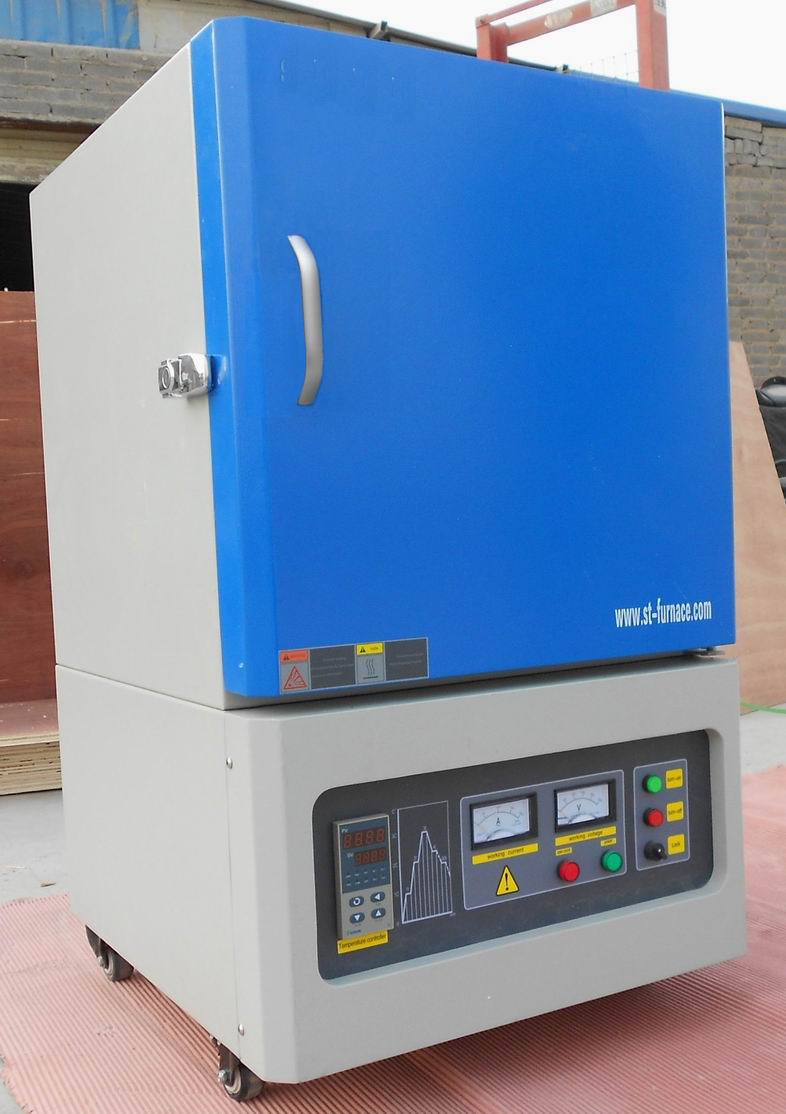

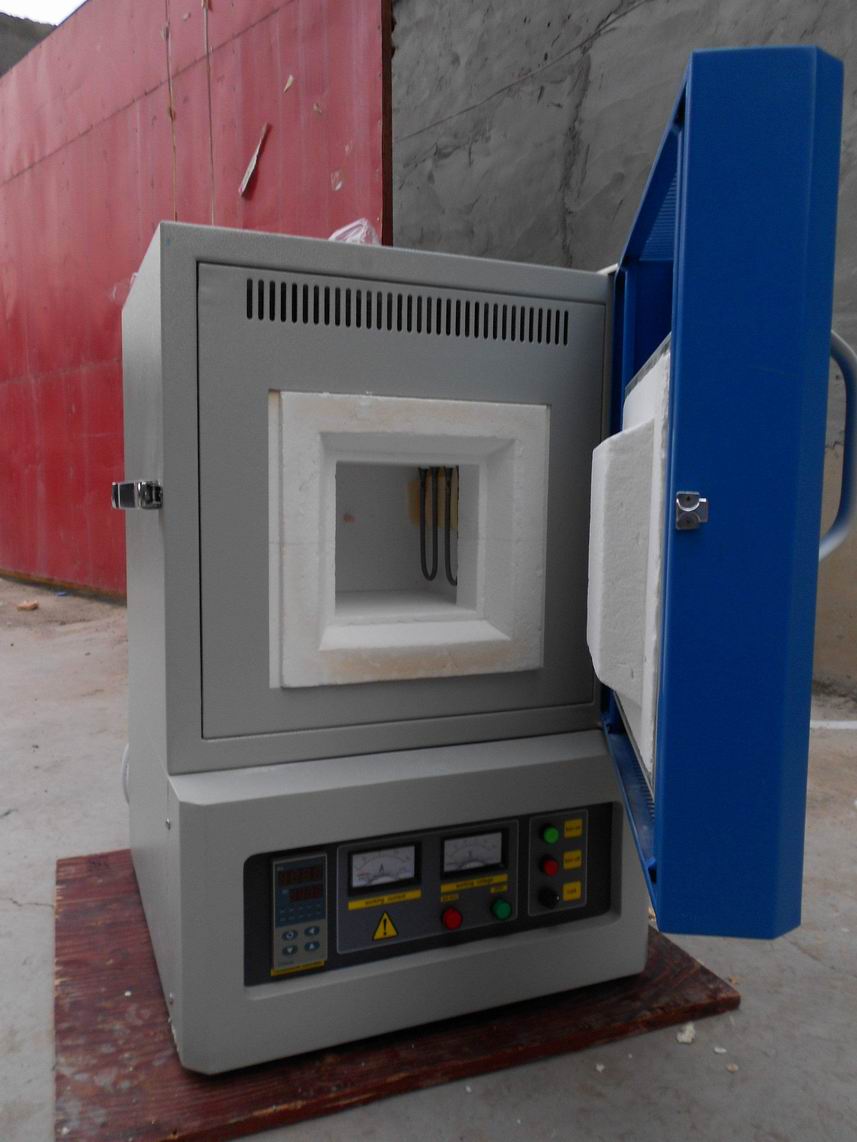

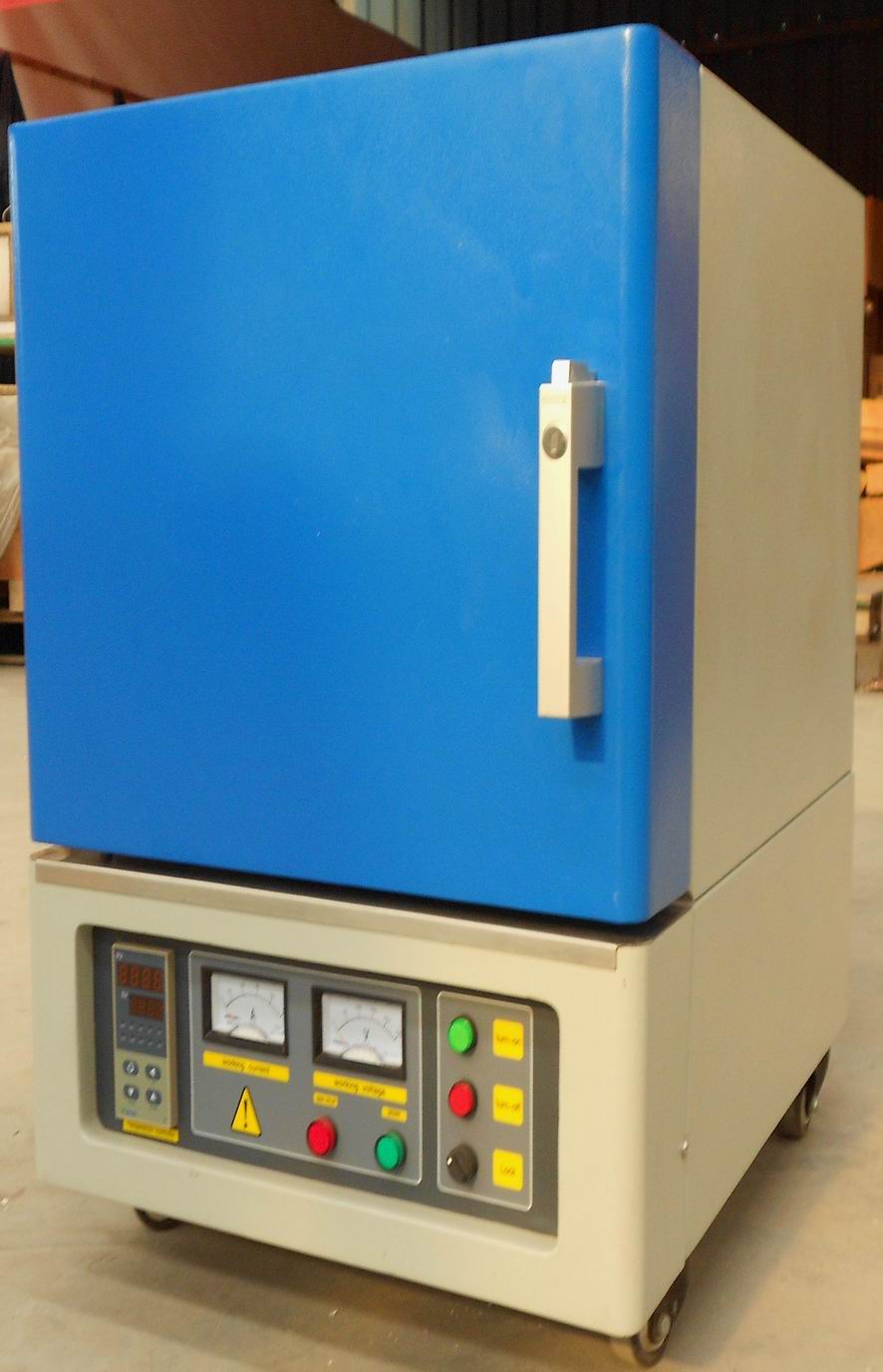

3、ST-1600MX-Ⅲ                                                              4、ST-1400CX-

Furnace chamber size:                                              Furnace chamber size:
        200×200×200mm (WxHxD)                                   200x200x200mm(WxHxD)

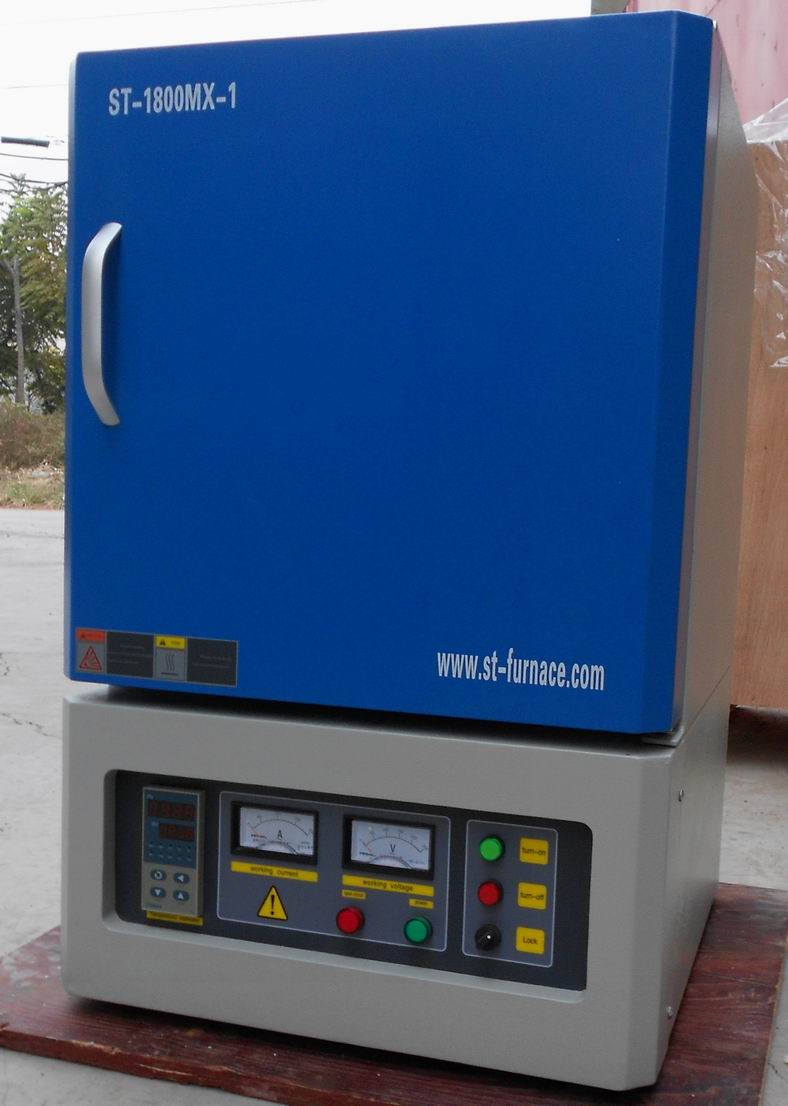

5、ST-1800MX-Ⅰ                                                     6、ST-1800MX-Ⅹ

Furnace chamber size:                                              Furnace chamber size:

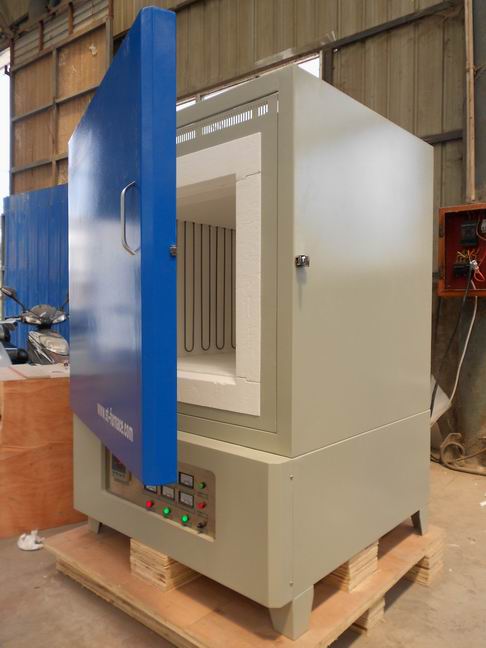

        150×150×150mm (WxHxD)                                   600x600x600mm(WxHxD)

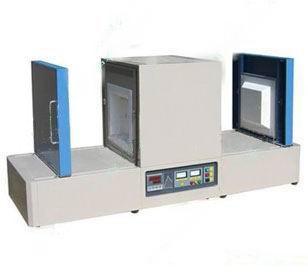

7、ST-1200RX/1400CX                                          8、ST-1200/1400
    Large box furnace series                                    Rail box shape furnace series

Furnace chamber size:                                                   Furnace chamber size:
         700×700×700mm~                                                       150×150×150mm~
1200×1200×1200mm(WxHxD)                                          400×400×400mm(WxHxD)
       (Optional choose)                                                             (Optional choose)

ST-1200RX/1400CX/1600MX/1700MX/1800MX  Box type Muffle Furnace have's feature .

a).ST-1200RX  series box NC muffle furnace, heating element embedded in the  chamber  wall. Muffle furnace heating when, can ensure uniform temperature in the furnace. Top mounted exhaust hole   hole, can will furnace of the steam produced emissions, be helpful for heating element the life extension. Muffle furnace front door install on observation aperture, can see furnace heated objects.

b).ST-1600/1700MX/1800MX series box furnace,  adopt double platinum  rhodium  thermocouple   type B , so  temperature measurement precision is high.

c).Muffle furnace chamber of  the  use  of  advanced  lightweight  aluminum  oxide  material  molding,  traditional  muffle  furnace compared  the  weight, reduce   60% .  Heat preservation  effect  is  good , temperature increase speed increased a times, save energy. Furnace service    life by four times.

d).Use  double  deck  ventilation  cooling  structure,  muffle  furnace work  in  high  temperature,   and   the   furnace   shell  surface  keep low temperature,  avoid scald the operating personnel,   safety is greatly increased.

e)、The 30 period of programmable intelligent digital temperature controller control    temperature, high degree of automation, convenient operation.

f)Can be installed computer communication module and RS485 communication interface, to realize the remote control.

Ⅲ、ST-1200RX/1400CX/1600MX/1700MX/1800MX  Box type Muffle Furnace have's application .
NC box type muffle furnace mainly used in chemical analysis, physical decomposition and synthesis,,superhard materials (such as ceramic), Rare and precious metal smelting and purification,metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.

Ⅳ、List of ST-1200RX/1400CX/1600MX /1700MX/1800MX box series NC Box Furnaces:

Performance index
1200RX series
1400CX series
1600MX series
1700MX series

1800MX series
Heating elements
Fe-Cr-Al   or
Fe-Mo-Al   wire
SiC   heater
MoSi2   heater
 MoSi2   heater
MoSi2   heater
Elements layout
3 or 4 or 5  sides
2 or 3  sides
2 or 3  sides
 2 or 3  sides
2 or 3  sides

30 segments programmable and numerical control
Heating Rate
0.1~20℃/min
0.1~20℃/min
0.1~20℃/min
 0.1~20℃/min
0.1~20℃/min
Maximum Temperature
1200℃(≤3h)
1400℃(≤3h)
1600℃(≤3h)
 1700℃(≤3h)
1800℃(≤3h)
Work  Temperature
1100℃
(continuously)
1300℃
 (continuously)
1500℃
(continuously)
 1600℃
(continuously)
1700℃
(continuously)
Temperature  accuracy
± 0.5℃
± 0.5℃
± 0.5℃
 ± 0.5℃
± 0.5℃
Working Voltage
AC,1-phase 110-240V
Or 3-phase 380-415V
AC,1-phase 110-240V
Or 3-phase 380-415V
AC,1-phase 110-240V
Or 3-phase 380-415V
AC,1-phase 110-240V
Or 3-phase 380-415V
AC,1-phase 110-240V
Or 3-phase 380-415V
power frequency
50/60Hz
50/60Hz
50/60Hz
 50/60Hz
50/60Hz

Ⅴ、 The  furnace chamber  size ,  type  and  the max power loss , see  the  table below:
furnace
chamber size
(W×H×Dmm)
ST-1200RX series
ST-1400CX series
ST-1600MX series
ST-1700MX series
 ST-1800MX series
type
Max. power
type
Max. power
type
Max. power
type
Max. power
 type MAX. power
150x150x150
2.5KW
2.8KW
3.2KW
3.5KW
 Ⅰ 3.8KW
150x150x200
2.9KW
3.3KW
4.0KW
4.5KW
 Ⅱ 5KW
200x200x200
4.0KW
4.8KW
6.0KW
7.5KW
 Ⅲ 9KW
200x200x300
5.0KW
6.0KW
7.5KW
9.0KW
 Ⅳ 12KW
250x250x300
6.5KW
7.5KW
9KW
12KW
 Ⅴ 18KW
300x300x400
8KW
9KW
12KW
15KW
 Ⅵ 21KW
350x350x400
10KW
12KW
15KW
18KW
 Ⅶ 24KW
400x400x400
12KW
15KW
18KW
21KW
 Ⅷ 27KW
500x500x50015KW18KW21KW27KW Ⅸ 35KW
600x600x600
18KW
24KW
27KW
36KW
 Ⅹ 42KW

Note :
 a)、Biggest in more than 12 KW power consumption of the stove, three-phase voltage power  supply;
 The rest of the single-phase power supply.
b)、If using a single power supply, the user should be in 110 ~ 240 V choice between.
If use three phase power, the user should be in 208 ~ 660 V choice between.
The frequency of the power supply should be in the 50 Hz ac 60 Hz ac or make a choice.
   c)、specific requirements, please the customer ordering explicitly told us.
